| Name: | IAW Clip on wheel balance weights |
| Code： | 2001 |
| Type: | 5g,10gg,15g,20g,25g,30g,35g,40g,45g,50g,55g,60g |
| Surface: | Zinc coating |
IAW wheel balance weights
- Clip size: 4.5+-0.2 fit for the steel rim
- Spec:5g,10gr,15g,20g,25g,30g,35g,40gr,45g,50gr,55gr,60g
- Used for most vehicles equipped with alloy wheels.
- Powder-coated surface helps eliminate corrosion and staining of expensive wheels
- The Clips are firmly and not easy to fall off with high quality hardened spring steel, easy to Install and designed for correct fit.
- Produce with quality to meet OEM Standards which same as OEM weights
- 100% lead-free ,no impact on the environment
- We offer OEM designing for box and carton packing: MOQ,20 pallets

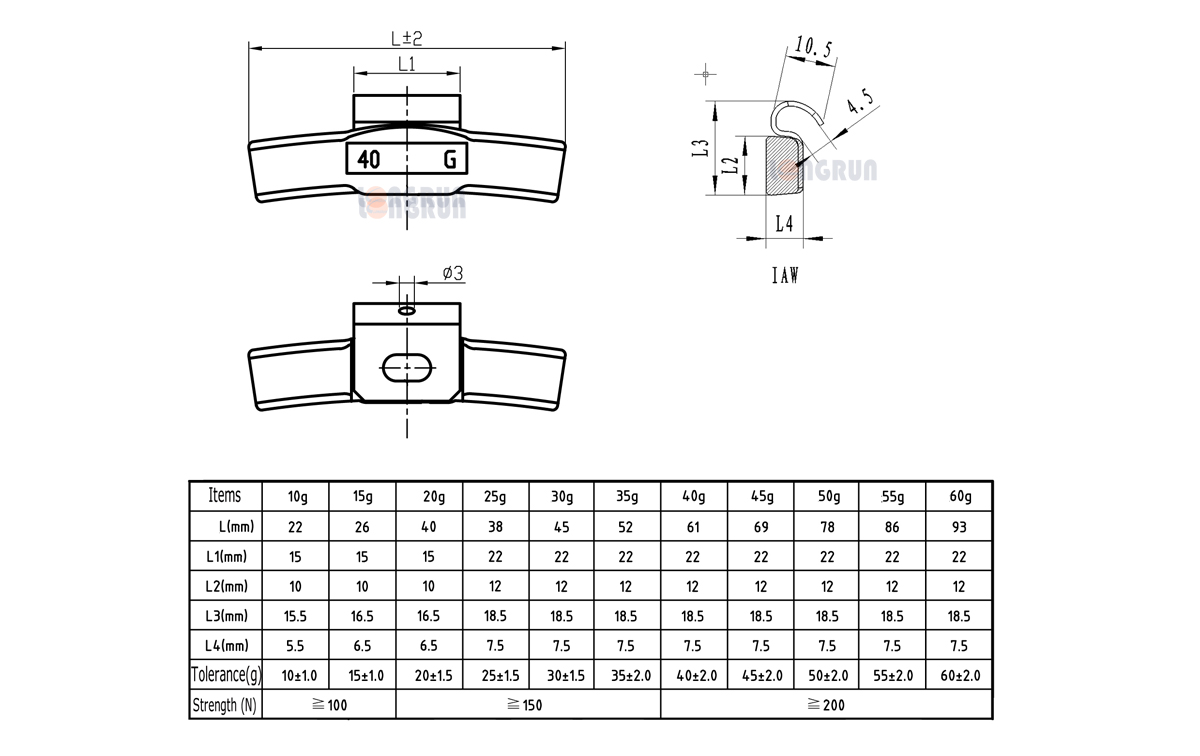

Detail drawing
Packing details
| SPEC. | PCS/BX | BX/CTN | Box Size(mm) | CTN Size(mm) |
| 5g | 100 | 20 | 115x75x60 | 420x250x130 |
| 10g | 100 | 12 | 135x115x70 | 420x250x150 |
| 15g | 100 | 12 | 135x115x70 | 420x250x150 |
| 20g | 100 | 8 | 195x115x60 | 420x250x130 |
| 25g | 100 | 8 | 195x115x60 | 420x250x130 |
| 30g | 100 | 6 | 225x130x70 | 420x250x150 |
| 35g | 50 | 12 | 135x115x70 | 420x250x150 |
| 40g | 50 | 8 | 195x115x60 | 420x250x130 |
| 45g | 50 | 8 | 195x115x60 | 420x250x130 |
| 50g | 50 | 8 | 195x115x60 | 420x250x130 |
| 55g | 50 | 8 | 195x115x60 | 420x250x130 |
| 60g | 50 | 6 | 225x130x70 | 420x250x150 |
Shipping details
| Lead time | 5-15 days |
| Loading port: | Xingang port |
| Qingdao | |
| Ningbo | |
| Shanghai | |
| Shipping method: | By sea For LCL and Full container terms |
| By air For LCL terms | |
| By Truck For Inland transportation |
Production flow
How to use it?
1.Choose a correct IAW wheel weight on the wheel rim. Check that it is correct by balancer machine.
2. Put the iwa wheel weight on the correct place. before striking with wheel weight hammer, make sure that the top and the bottom of the clip touching the rim flange. The body of the weight should not be touching the rim!
3. After its properly aligned, knock the clip with a wheel weight plier. Also Please Note that Striking the weight body could result in clip retention failure or weight movement.
4. After the weight installed , to check make sure that it is secured properly.
Clip Profile and Fitment Information
| Drawing | Type | Application |
 |
P | The most common weight for steel wheels. |
 |
AW | Used on vehicles equipped with alloy rims that were manufactured prior to 1995 such as Buick, Cadillac, Chevrolet, Chrysler,Eagle, Geo, Isuzu, Oldsmobile, Plymouth Pontiac. |
 |
MC | Used for many models such as Buick, Cadillac, Chevrolet, Chrysler, Dodge, Eagle, Ford, Lincoln, Mazda, Mercury, Mitsubishi, Oldsmobile, Plymouth. |
 |
IAW | Used on many new Ford models, on most European vehicles and certain Asian vehicles equipped with alloy rims. Fits Many brands like Audi, BMW, Cadillac, Jaguar, Kia, Nissan, Toyota, Volkswagen & Volvo |
 |
EN | Fits Acura, Audi, Ford Trucks, Honda, Mercedes and Volkswagen |
 |
FN | Fits Acura, Geo, Honda, Infiniti, Lexus, Nissan and Toyota |
 |
T | Fits Chevrolet, Ford, GMC and Lincoln |
Summary
IWA Clip on wheel balance weights ,we also call it knock on wheel weights,is used to balance a wheel and tire assembly. An out-of-balance tire can adversely affect ride quality and shorten the life of your tires, bearings, shocks and other suspension components. Balanced tires help save fuel, preserve tire life, and improve safety and comfort.
FAQ
Q1: How to control the know on wheel weights quality?
Each order in each process would be carefully inspected by professional work, there is detailed inspection recoding
Q2: Can you provide OEM/ODM service for the iaw knock on wheel weights?
Yes,it will depend on your requests such size, material, quantity, design, packing solution, etc., , and your logo will be costumed on your products.
Q3: Shipping Method and Shipping Time?
1) Shipping time is about one month depends on country area.
2) By sea port to port: about 20-35 days
3) Agent appointed by clients before shipment.
Q4. What is your payment terms for iaw clip on wheel weights?
We accept T/T and L/C both ,if the order value less than 10000$,we would ask for 100% payment; 30% deposit and 70% before shipping for big order such as full container.
Q5. What is the warranty of your products?
We offer the warranty of 12 months for all products.
