| Name: | Zinc die casting clip on wheel balance weight |
| Code： | 3001 |
| Size: | 5g,10g,15g,20g,25g,30g,35g,40g,45g,50g,55g,60g |
| Surface: | Grey coating |
Steel rim die casting zinc wheel balance weights
1.Clip size: 2.2+-0.2 fit for balancing passenger car steel rims.
2.Spec:5g-60g
3.Used for most vehicles equipped with steel wheels.
4.Surface: high quality grey coating.
5.Quality to meet OEM Standards
6.Clips are made of Hardened spring steel f; easy to Install and designed for correct fit.
7.Eco friendly ,no impact on the environment
Packing Details
| SPEC. | PCS/BX | BX/CTN | Box Size | Carton Size | |
|
5 |
G | 100 | 20 | 115x75x60 | 420x250x130 |
|
10 |
G | 100 | 12 | 135x115x70 | 420x250x150 |
|
15 |
G | 100 | 12 | 135x115x70 | 420x250x150 |
|
20 |
G | 100 | 8 | 195x115x60 | 420x250x130 |
|
25 |
G | 100 | 8 | 195x115x60 | 420x250x130 |
|
30 |
G | 100 | 6 | 225x130x70 | 420x250x150 |
|
35 |
G | 50 | 12 | 135x115x70 | 420x250x150 |
|
40 |
G | 50 | 8 | 195x115x60 | 420x250x130 |
|
45 |
G | 50 | 8 | 195x115x60 | 420x250x130 |
|
50 |
G | 50 | 8 | 195x115x60 | 420x250x130 |
|
55 |
G | 50 | 8 | 195x115x60 | 420x250x130 |
|
60 |
G | 50 | 6 | 225x130x70 | 420x250x150 |
Shipping details
| Lead time | 5-15 days |
| Loading port: | Tianjin |
| Qingdao | |
| Ningbo | |
| Shanghai | |
| Shenzhen | |
| Shipping method: | By sea For LCL and Full container terms |
| By air For LCL and Full container terms | |
| By Truck For Inland transportation | |
| By Express For samples order |
Production flow

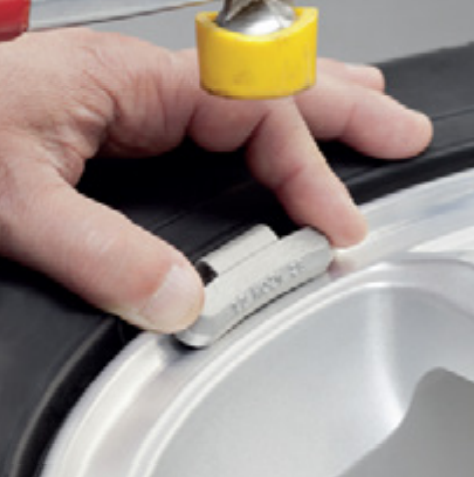

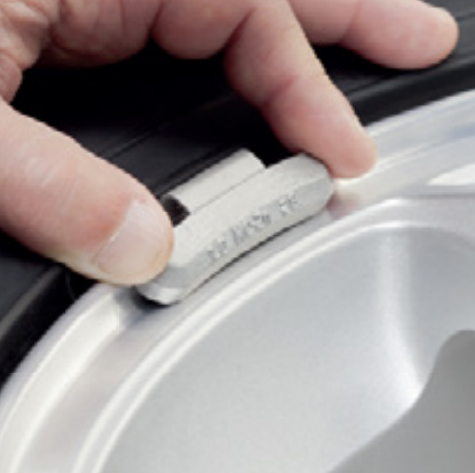

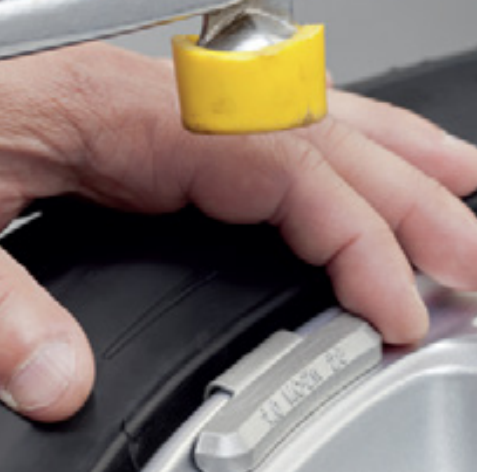

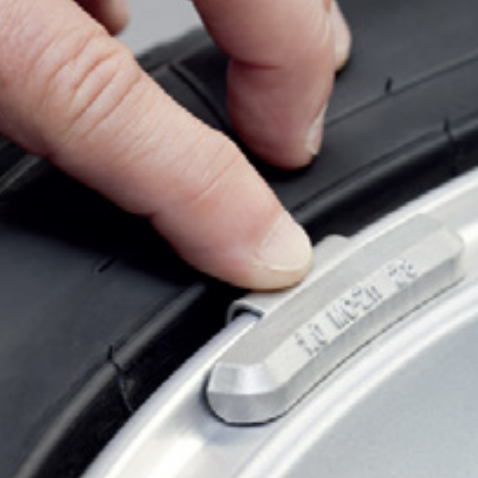

How to use it?
1.select the correct wheel weight for the vehicle you are servicing. Check that the weight is correct by testing the placement on the wheel flang
2. Place the wheel weight in the correct place. Prior to striking with the hammer, make sure that the top and the bottom of the clip are touching the rim flange. The body of the weight should not be touching the rim!
3. Once the wheel weight is properly aligned, strike the clip with a proper wheel weight installation hammer. Please Note: Striking the weight body could result in clip retention failure or weight movement
4. After installing the weight, check to make sure that it is secured properly.
Clip Profile and Fitment Information
| Drawing | Type | Application |
 |
P | The most common weight for steel wheels. |
 |
AW | Fits Buick, Cadillac, Chevrolet, Chrysler, Dodge,Eagle, Geo, Isuzu, Oldsmobile, Plymouth and
Pontiac. |
 |
MC | Fits Buick, Cadillac, Chevrolet, Chrysler, Dodge,Eagle, Ford, Lincoln, Mazda, Mercury, Mitsubishi,
Oldsmobile, Plymouth, Pontiac and Saturn. |
 |
IAW | Fits AMC, Audi, BMW, Chrysler, Dodge, Eagle,Geo, Hyundai, Merkur, Mitsubishi, Nissan/
Datsun, Plymouth, Pontiac, Saab, Sterling, Subaru, Suzuki, Toyota, Volkswagen and Volvo |
 |
EN | Fits Acura, Audi, Ford Trucks, Honda, Mercedesand Volkswagen |
 |
FN | Fits Acura, Geo, Honda, Infiniti, Lexus, Nissanand Toyota |
 |
T | Fits Chevrolet, Ford, GMC and Lincoln |
FAQ
Q1: How to control the ZINC dia casting wheel weight quality?
We have always attached great importance to maintaining quality levels. Moreover, we always adhere to the principle of providing customers with better quality, better price and better service.
Q2: Do you provide OEM/ODM service?
Yes, we process customized orders. That means the size, material, quantity, design, packing scheme, etc. will depend on client’s needs.
Q3: what is your shipping Methods and Shipping Time?
1) Shipping time is about one month depends on order quantity.
2) By sea port to port: about 20-35 days
3) Agent appointed by clients
Q4: What is the MOQ for your ZINC dia casting wheel weight production?
The MOQ is depends your requirement for color, size, and material.
Q5. How to pay?
Normly,We accept T/T and L/C both are acceptable, 100% payment for little value bill; 30% deposit and 70% before shipping for big order.
Q6. What is the warranty of your ZINC dia casting wheel weight?
For clip on wheel weights, We offer the warranty of 12 months for all ZINC dia casting wheel weight.
